Smart Freight Elevator – Automated, Safe & Designed for Seamless Logistics
Application scenario: Factories, workshops, logistics centers
Building specifications: 2 floors, 2 stations with a load of 3000 kg, Speed 0.5M/S ,6 meters high building
$12,500
Price:
classification:
Freight Elevator
keyword:
yzfuji
|
Serial number |
Name |
Manufacturer, brand |
Remark |
|
1 Host Configuration |
Traction main engine assembly |
Asia Fuji/Montenali/Ferde/Shunda |
|
|
Machine beam |
Asia Fuji FUJI |
Genuine material |
|
|

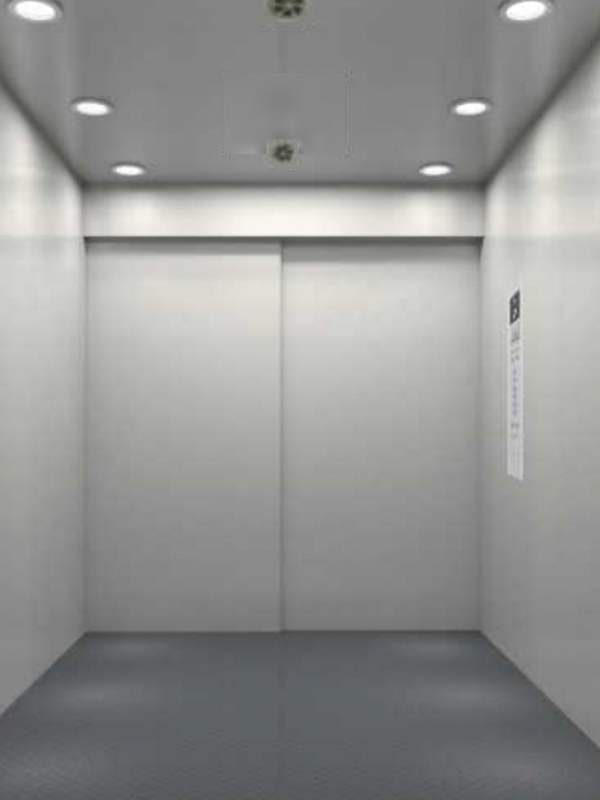

Car configuration |
Door Operator |
Asia Fuji FUJI / Zhanpeng ZP / Shenling |
Hunan /Jiangsu |
|
Car sill |
Asia Fuji FUJI |
Hard aluminum alloy /steel plate/cast iron |
|
|
Car wall |
Asia Fuji FUJI |
A3F Steel Plate Paint |
|
|
Car roof |
Asia Fuji FUJI |
A3F Steel Plate Paint |
|
|
Car door |
Asia Fuji FUJI |
A3F Steel Plate Paint |
|
|
Ventilation fan |
Suzhou Hengda HD |
Round |
|
|
Car frame |
Asia Fuji FUJI |
Genuine material |
|
|
Upper beam assembly |
Asia Fuji FUJI |
Genuine material |
|
|
Column assembly |
Asia Fuji FUJI |
Genuine material |
|
|
Car bottom assembly |
Asia Fuji FUJI |
Genuine material |
|
|
floor |
Asia Fuji FUJI |
Patterned steel plate |
|
|
Guide Shoes |
Asia Fuji FUJI |
Guangri Type |
 |
 |
 |
 |
|
Machineroomfreightelevatorparameters |
||||||||
|
Capacity |
Speed |
Entrance |
|
|
|
Machine romm |
Pit depth |
Overhead height |
|
Q |
V |
OP |
CW×CD |
SW×SD |
HW×HD |
HW×HD × MH |
PD |
OH |
|
2000 |
0.5 |
1600 |
1800×2150 |
1860×2360 |
2800×2950 |
3500×4000×2400 |
1500 |
4200 |
|
1.0 |
1600 |
4300 |
||||||
|
3000 |
0.5 |
1800 |
2200×2450 |
2268×2660 |
3300×3250 |
3500×4000×2400 |
1500 |
4300 |
|
1.0 |
1600 |
4500 |
||||||
|
5000 |
0.5 |
2200 |
2700×3100 |
2768×3310 |
4000×3900 |
4000×4500×2500 |
1500 |
4800 |
|
1.0 |
1600 |
5000 |
||||||
 |
 |
 |
 |
Made in China: Asia FUJI elevator manufacturing enterprises, after 30 years of development, have a complete industrial chain system, provide high-quality products at a low price, and are extremely cost-effective.
 |
 |
 |
 |
quality products and competitive prices. We warmly welcome customers from at home and abroad to cooperate with us for common success. Asia FUJI elevator is actively looking for national agent partners.
COOPERATIVE PARTNERS
Our gloves are exported to more than 20 countries overseas, provide thoughtful services to all partners and make outstanding contributions to the development and progress of the industry!
Exhibition
Quality products and competitive prices. We warmly welcome customers from at home and abroad to cooperate with us for common success. Asia FUJI elevator is actively looking for national agent partners.
Professional support services
Professional technical support
Comprehensive operation training
Provide detailed installation and operation instructions
Intuitive installation video guide
Transparent parts list provides convenient service for customers' later maintenance work
All elevators need to be tested for comfort

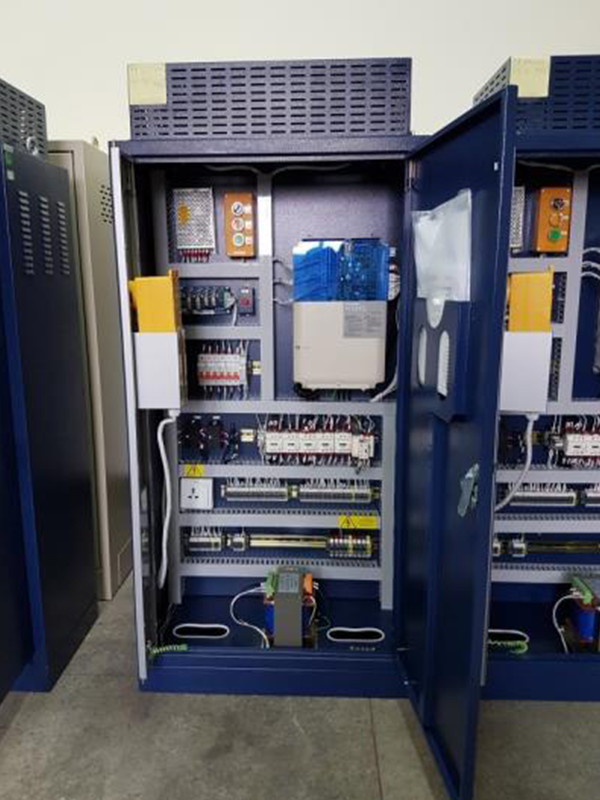

New generation intelligent vector elevator integrated controller
It is a direct docking technique based on the principle of distance control,and N curves(no segment speed)are generated automatically. High-performance vector control gives full play to the motor performance,so as to obtain better comfort; Built-in accurate real-time clock,providing rich time-sharing controlfunction,convenient for building intelligent management.
Safe and reliable
In the control system, the 32-bit ARM microprocessor is introduced as the control core to make the system control accurate and reliable and get a stable ride comfort. An independent speed monitoring device is added to monitor the running speed of the elevator in the whole process, which is safe and reliable.
High efficiency and energy saving

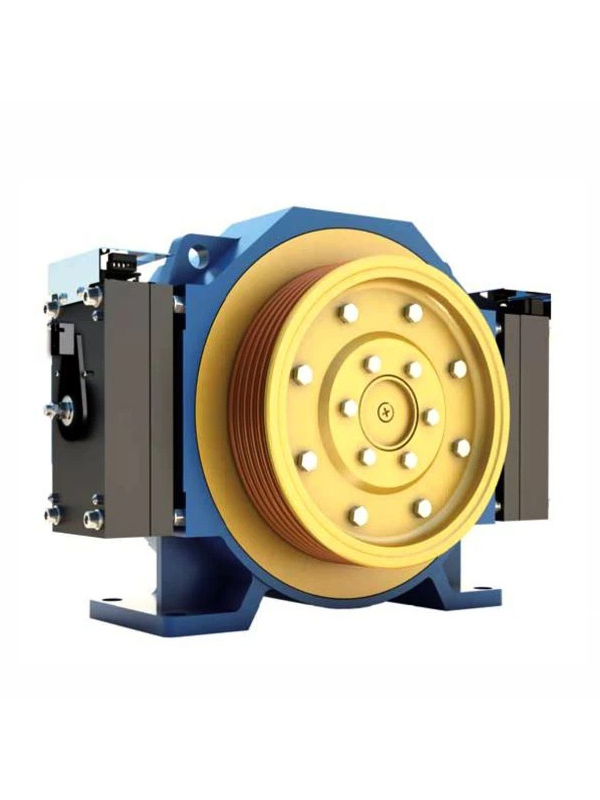

In the drive system, permanent magnet synchronous motor is used as the power source,no reduction gearbox,no excitation current, high efficiency, energy saving, low noise and maintenance free.
Frequency control
In the control of opening and closing the door, VVVF variable frequency speed regulating door motor is adopted to make the opening and closing more stable, and the noise of opening and closing the door is less than 55dB.

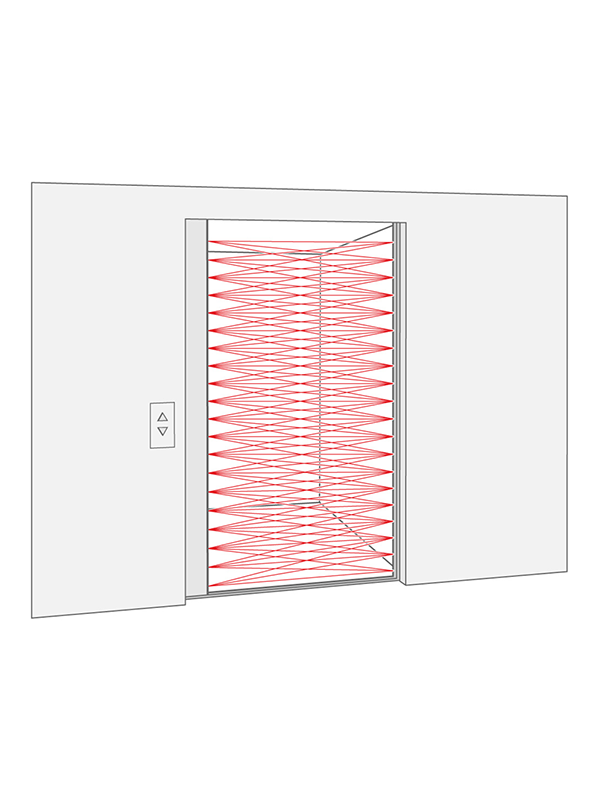

Light curtain induction
In the elevator door protection, the light curtain inductive protection device (light curtain)is adopted. The non-contact protection device allows passengers to enjoy more considerate protection. It is no longer easy for passengers to cause collision panic like the mechanical protection device (safety contact plate).
