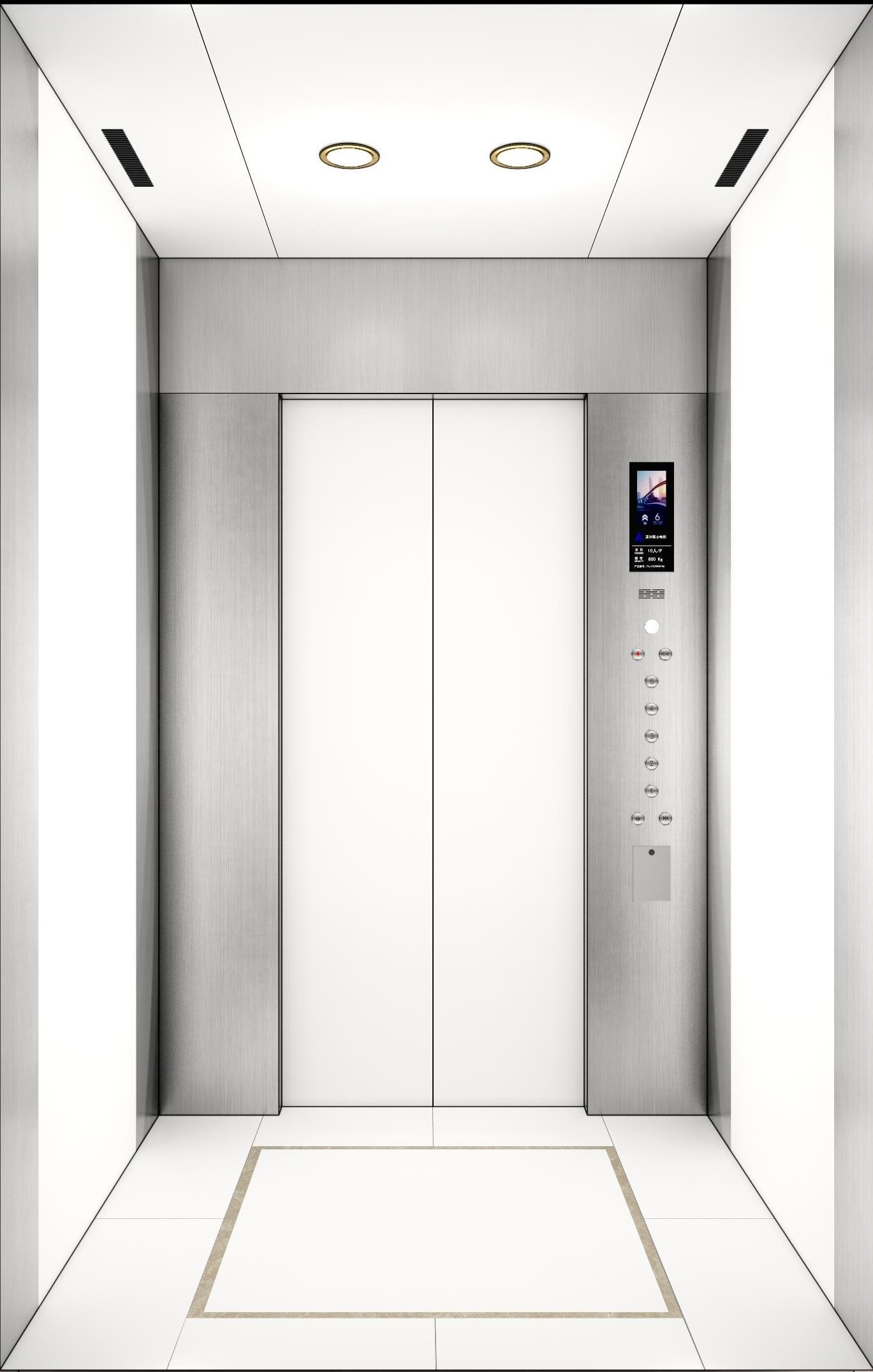

Passenger Elevator – High-End Residential/Commercial Use
Application: High-end residential, apartments, commercial buildings
Building Specs: 10 floors, 32m height, no machine room
Capacity: 1000 kg (13 persons)
Speed: 1.5 m/s
Stops: 10 stations
$12100
Price:
classification:
Passenger Elevator
Product Solutions
keyword:
yzfuji
PRODUCT DETAILS
PRODUCT DETAILS
PRODUCT DETAILS
Serial number | Product Parts Name | Model | Brand | Origin | |
1 | Host
| Traction machine | Permanent magnet synchronous | Asia Fuji /KDS/Tongjun | Hunan /Guangdong/Jiangsu |
2 | Control System
| Control cabinet | KZG Series | Asian Fuji | Hunan |
3 | Frequency conversion machine | FUJI/ NICE series | Asia Fuji /Monark | Hunan/Jiangsu | |
4 | Contactor | SC Series | Fuji | Japan / Changshu | |
5 | Door Operator
| Frequency conversion door operator | Middle/side parting | Asia Fuji /Zhanpeng/Shenling | Hunan /Jiangsu |
6 | Landing door device | Middle/side parting | Asia Fuji /Zhanpeng/Shenling | Hunan /Jiangsu | |
7 | Safety components
| Hydraulic buffer (1.0m/s or more) | FUJI series /JKZ | Asia Fuji /Deli | Hunan /Guangdong |
8 | Polyurethane buffer (1.0m/s) | ZDH-A | Yongcheng | Jiangsu | |
9 | Safety Gear | FUJI Series /LSG | Asia Fuji /Rakuten | Hunan /Shanghai | |
 |  |  |  |

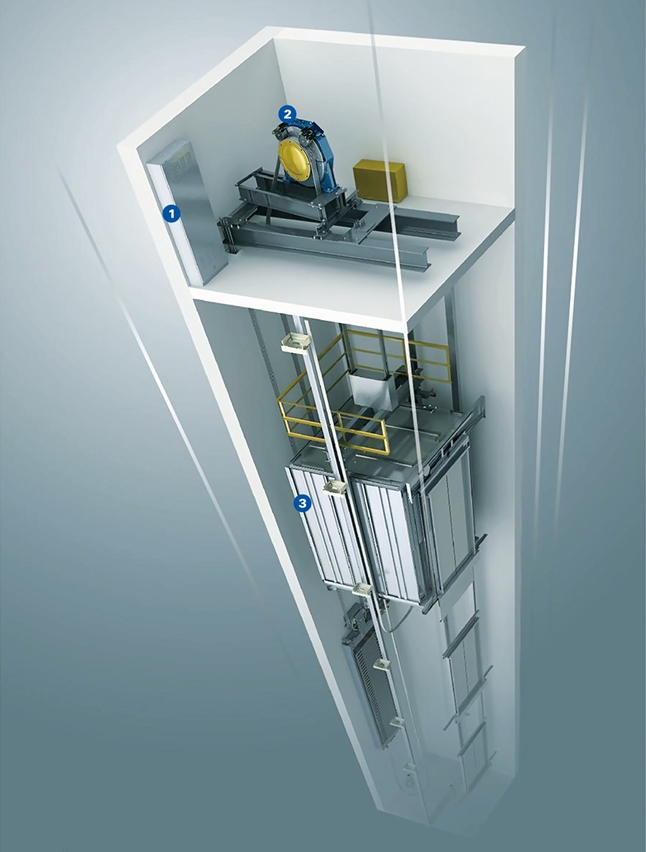

No engine room passenger elevator parameters | |||||||||||
Capacity | Person | Speed | Entrance | Clear car dimension | Car outstide dimension | Clear holstway dimension | Pit depth | Overhead height | Rated power | Power supply | Lead-in |
Q | NO | v | OP | CW×CD | SW×SD | HW×HD | PD | OH | KW | KVA | MM² |
630 | 8 | 1.0 | 700 | 1200×1300 | 1252×1466 | 2000×1900 | 1500 | 4400 | 4.3 | 5.2 | 4 |
1.5 | 1600 | 4500 | 6.8 | 8.2 | 6 | ||||||
800 | 10 | 1.0 | 800 | 1300×1450 | 1352×1616 | 2100×2000 | 1500 | 4400 | 5.4 | 6.5 | 6 |
1.5 | 1600 | 4500 | 8.6 | 10.3 | 6 | ||||||
1.75 | 1700 | 4700 | 9.6 | 11.5 | 6 | ||||||
2.0 | 1800 | 4800 | 11 | 13.2 | 6 | ||||||
2.5 | 2000 | 4900 | 13.8 | 16.6 | 10 | ||||||
1000 | 13 | 1.0 | 900 | 1450×1600 | 1502×1766 | 2300×2000 | 1500 | 4400 | 6.4 | 7.7 | 6 |
1.5 | 1600 | 4500 | 10.7 | 12.8 | 6 | ||||||
1.75 | 1700 | 4700 | 11.7 | 14 | 6 | ||||||
2.0 | 1800 | 4800 | 13.4 | 16.1 | 10 | ||||||
2.5 | 2000 | 4900 | 17 | 20.4 | 10 | ||||||
|  |
 |  |
Elevator Made in China: Asia FUJI elevator manufacturing enterprises, after 30 years of development, have a complete industrial chain system, provide high-quality products at a low price, and are extremely cost-effective.
 |  |  |  |
COOPERATIVE PARTNERS
Our gloves are exported to more than 20 countries overseas, provide thoughtful services to all partners and make outstanding contributions to the development and progress of the industry!
 |  |  |  |
Exhibition
Quality products and competitive prices. We warmly welcome customers from at home and abroad to cooperate with us for common success. Asia FUJI elevator is actively looking for national agent partners.
 |  | |  |
Related Products
Our elevators use world-leading automated equipment and production processes, follow strict processes and quality standards, in line with Chinese national and European standards.
COOPERATIVE PARTNERS
Our gloves are exported to more than 20 countries overseas, provide thoughtful services to all partners and make outstanding contributions to the development and progress of the industry!
Exhibition
Quality products and competitive prices. We warmly welcome customers from at home and abroad to cooperate with us for common success. Asia FUJI elevator is actively looking for national agent partners.

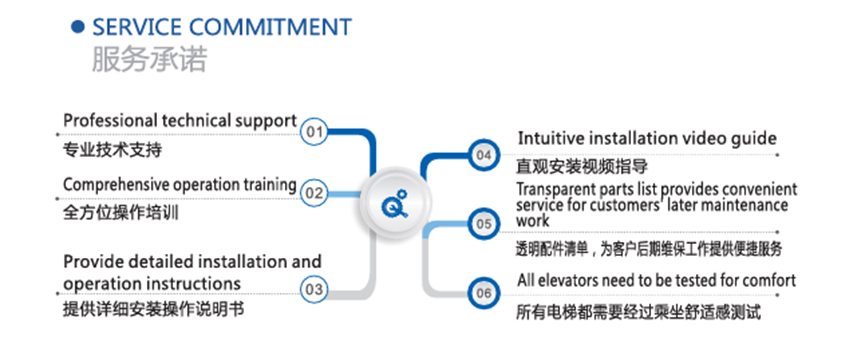

Professional support services
Professional technical support
Comprehensive operation training
Provide detailed installation and operation instructions
Intuitive installation video guide
Transparent parts list provides convenient service for customers' later maintenance work
All elevators need to be tested for comfort
New generation intelligent vector elevator integrated controller
It is a direct docking technique based on the principle of distance control,and N curves(no segment speed)are generated automatically. High-performance vector control gives full play to the motor performance,so as to obtain better comfort; Built-in accurate real-time clock,providing rich time-sharing controlfunction,convenient for building intelligent management.
Safe and reliable
In the control system, the 32-bit ARM microprocessor is introduced as the control core to make the system control accurate and reliable and get a stable ride comfort. An independent speed monitoring device is added to monitor the running speed of the elevator in the whole process, which is safe and reliable.
High efficiency and energy saving
In the drive system, permanent magnet synchronous motor is used as the power source,no reduction gearbox,no excitation current, high efficiency, energy saving, low noise and maintenance free.
Frequency control
In the control of opening and closing the door, VVVF variable frequency speed regulating door motor is adopted to make the opening and closing more stable, and the noise of opening and closing the door is less than 55dB.
Light curtain induction
In the elevator door protection, the light curtain inductive protection device (light curtain)is adopted. The non-contact protection device allows passengers to enjoy more considerate protection. It is no longer easy for passengers to cause collision panic like the mechanical protection device (safety contact plate).
Related products
Floors: 2 (6m height)
Speed: 0.5 m/s
Use Case: Loading docks, workshop material handling<
Floors Served: 3
Max Load: 320 kg (4–5 persons)
Speed: 0.4 m/s (Leisurely & secure)
Rise: 10 meters
Installation: Minimal footprint (MRL option if available)
Application: High-end residential, apartments, commercial buildings
Building Specs: 10 floors, 32m height, no machine room
Capacity: 1000 kg (13 persons)
Speed: 1.5 m/s
Stops: 10 stations
